Transformer Sealing Solutions

Sealing Solutions For Power & Distribution Transformers

Engineered Seal Products (ESP) engineers and manufactures custom elastomer and polymer components as integrated elements of power and distribution transformer systems. Our solutions are designed to address oil leakage, moisture ingress, pressure management, and environmental exposure, supporting reliable operation and a long service life throughout the entire transformer lifecycle.

Products for Transformer Applications

ESP supports both oil-filled and dry-type transformer designs with application-specific sealing and polymer components, engineered to meet the demands of each system architecture.

• Standard and custom o‑rings (small to large cross‑sections)
• Molded and die‑cut tank gaskets
• Radiator and conservator gaskets
• Valve and bushing seals
• LTC shaft seals
• Submersion‑rated sealing components
• Backup rings and support elements

Each component is specified for compression characteristics, fluid and oil compatibility, temperature range, and extended service intervals, ensuring performance aligns with transformer operating requirements.

Typical Operating Conditions in Transformer Systems

Transformer sealing and polymer components are specified to maintain performance under demanding, long-duration service conditions, such as:

• Continuous oil immersion
• Internal pressure and vacuum cycles
• Wide operating temperature ranges
• Long‑term static compression
• Outdoor exposure to moisture, ozone, and UV
• Submersion or flood‑prone installations

ESP selects materials and designs based on these operating conditions to ensure consistent, long-term reliability and compliance with industry standards.

Common Sealing Failure Modes in Transformers

Common sealing‑related issues in transformer systems include:

• Oil leakage due to compression set or material aging
• Seal hardening or cracking from prolonged thermal exposure
• Moisture ingress caused by enclosure or gasket degradation
• Improper material selection for oil or environmental compatibility
• Installation‑related damage or misalignment during assembly or service

ESP collaborates with OEMs and operators to mitigate these risks through disciplined material selection, geometry optimization, and system-level engineering support.

Transformer Types Supported

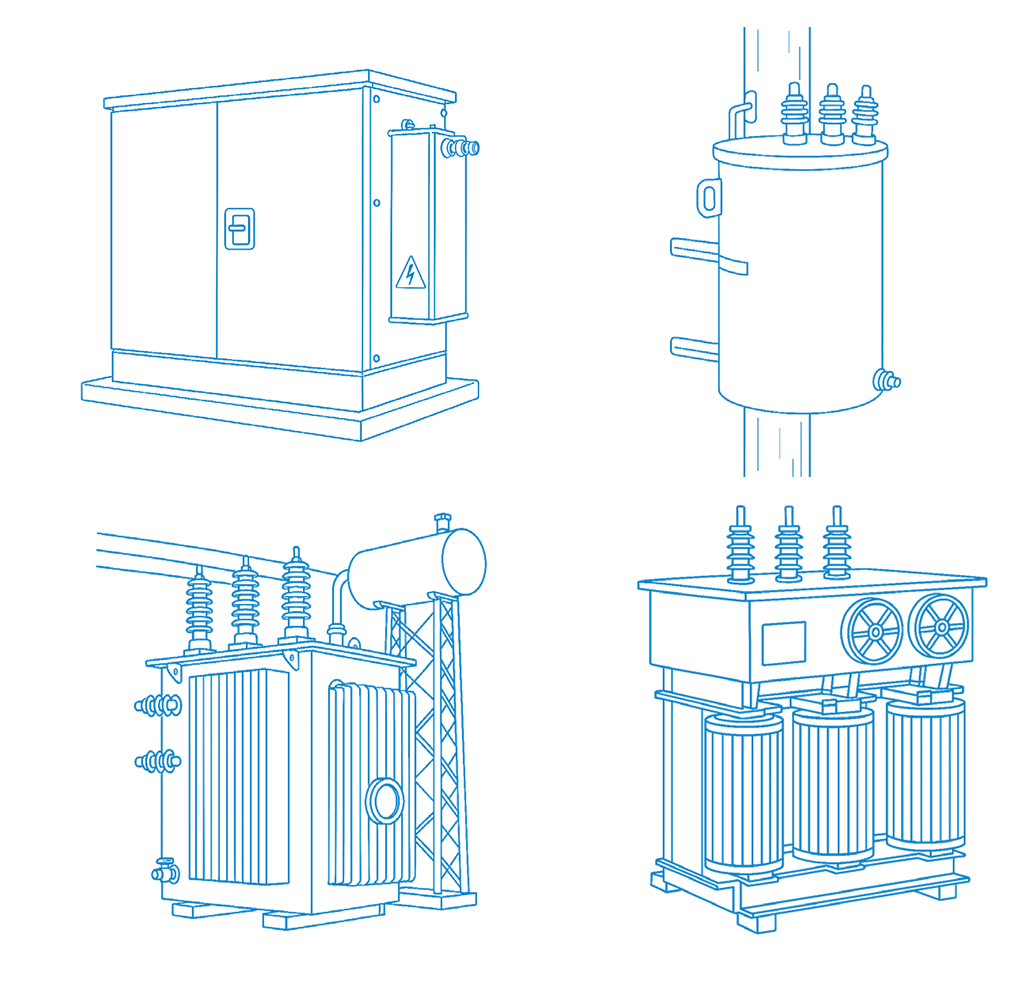

ESP components are used across a wide range of transformer architectures, including:

• Padmount and polemount transformers
• Distribution and substation transformers
• Power, GSU, and auto‑transformers
• Network and vault transformers
• HVDC, mobile, furnace, and traction transformers
• VPI/VPE dry‑type transformers

Sealing solutions are engineered for critical locations, including tank covers, valves, bushings, enclosures, and auxiliary systems, to support system integrity throughout the transformer.

Materials, Standards & UL‑Recognized Options

Material selection for transformer components is guided by application-specific requirements, including oil compatibility, temperature range, compression set, and environmental exposure. ESP offers a comprehensive portfolio of elastomeric and polymer materials engineered for long-term transformer service and regulatory compliance.

Elastomer & Polymer Materials

ESP commonly supports transformer applications using:

• NBR and HNBR
• FKM (fluorocarbon)
• EPDM and silicone
• FVMQ (fluorosilicone)
• Polyurethane
• PTFE, PEEK, and nylon
• Cork‑rubber, graphite, and composite gasket materials

Materials are specified based on sealing dynamics, oil immersion, enclosure requirements, electrical environment, and targeted service life, ensuring alignment with the transformer system's needs.

UL‑Recognized Materials (When Required)

UL Transformers Flyer

Where compliance or customer specifications require, ESP supplies UL-recognized elastomer and polymer materials qualified for transformer applications.

ESP maintains UL Product iQ® listings and supports materials recognized to applicable standards, including:

• UL 157 – Gaskets and seals for fluid compatibility
• UL 50 / UL 50E – Enclosure sealing and environmental performance
• UL 94 – Flammability ratings for non‑metallic components

UL-recognized materials are available for oil-filled sealing, enclosure gasketing, and auxiliary components as required by the application. ESP provides documentation and traceability to support qualification, validation, and audit processes.

EMI Shielding & Thermal Interface Materials for Transformer Electronics

Modern transformer systems increasingly incorporate monitoring, control, protection, and communication electronics that require electromagnetic compatibility and thermal management.

ESP supports these requirements with Parker Chomerics EMI shielding and thermal interface materials, specified for transformer-adjacent electronic subsystems.

Typical Applications

• Control cabinets and enclosure doors
• Protection relays and monitoring electronics
• Communication modules and sensor assemblies
• Auxiliary and solid‑state power electronics

EMI & Thermal Solutions

• Conductive elastomer EMI gaskets
• Fabric‑over‑foam shielding materials
• Thermal pads, gap fillers, and phase‑change materials

These engineered materials manage electromagnetic interference and thermal dissipation while supporting enclosure integrity and system reliability.

Engineering, Assembly & Supply Chain Support

ESP partners with customers across the transformer lifecycle, providing support beyond component supply, including:

• Application and material review
• Seal design support for grooves and flanges
• Transformer‑specific assembly and kitting
• Vendor Managed Inventory (VMI)
• Support for new production, refurbishment, and field service programs

These capabilities are structured to support long-life, safety-critical transformer systems and to reduce risk across engineering, manufacturing, and supply chain.

Work With a Transformer Component Specialist

Engineered Seal Products delivers custom molded elastomers, plastics, o-rings, gaskets, and system-level engineering support for transformer applications, combining performance, compliance, and long-term reliability.

Contact ESP to start a technical discussion.

Final Manufacturing Note

Final material selection and component approval are determined by system design, installation parameters, and operating environment. ESP collaborates with customers to align materials and designs with real-world transformer requirements.
