Parker Chomerics Thermally Conductive Gap Filler Pads

Parker THERM-A-GAP™ Pads

FEATURES/BENEFITS

  • Ultra low deflection force
  • High thermal conductivity
  • High tack surface reduces contact resistance
  • Various thicknesses available, finished in standard sheets
  • Custom sized configurations and/or cut parts are available as individual parts or on sheets
  • “A” version offers high strength acrylic PSA for ease of installation

Typical Applications

  • Telecommunications equipment
  • Consumer electronics
  • Automotive electronics (ECUs)
  • LEDs, lighting
  • Power conversion
  • Power semiconductors
  • Desktop computers, laptops, servers
  • Handheld devices
  • Memory modules
  • Vibration dampening

Parker Chomerics Thermal Interface

Parker Chomerics Logo

PDF Parker Chomerics Thermal Interface Materials Catalog

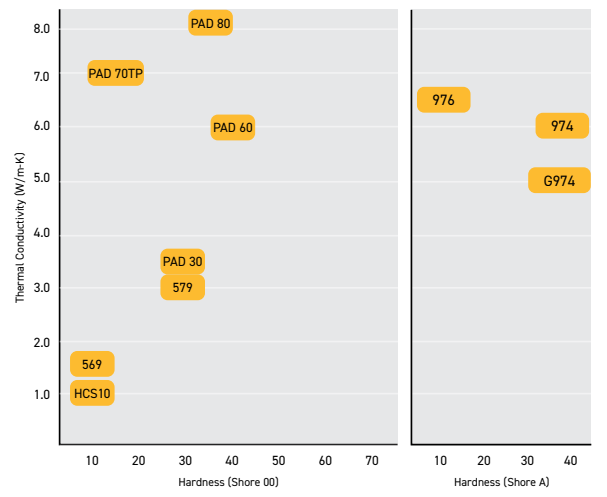

Performance Guide

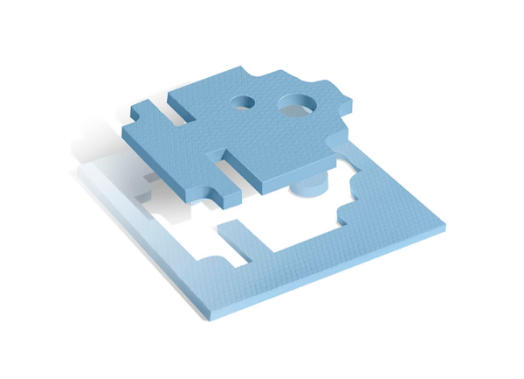

Parker THERM-A-GAP™ PAD 30

Parker Chomerics THERM-A-GAP™ PAD 30 is a thermally conductive, electrically isolating gap filler pad with a thermal conductivity of 3.2 W/m‐K. Designed to provide effective heat transfer between electronic devices, heat sinks, or other cooling features, THERM‐A‐GAP PAD 30 offers the ideal combination of heat transfer, low outgassing, and low compressing forces. With a Shore 00 hardness measurement of 30, it is designed to maintain conformability in gaps that contain uneven mating surfaces, air gaps, or where rough surface texture is a concern. THERM‐A‐GAP PAD 30 was developed to be a universal solution across applications and industries requiring a moderate level of thermal performance in electronic device designs. It is a cost‐effective solution and optimized for flexibility of design with several material carrier options available and ease of customization to unique shapes and sizes.

Product Features

  • 3.2 W/m-K thermal conductivity
  • Very low compression force
  • Very good thermal conductivity
  • High tack surface reduces contact resistance
  • “A” version offers high strength acrylic PSA for permanent attachment
  • UL recognized V-0 flammability
  • RoHS compliant
  • Vibration dampening

Parker Therm-A-Gap Pad 30

Parker Chomerics Logo

PDF Parker Chomerics THERM-A-GAP PAD 30 Datasheet

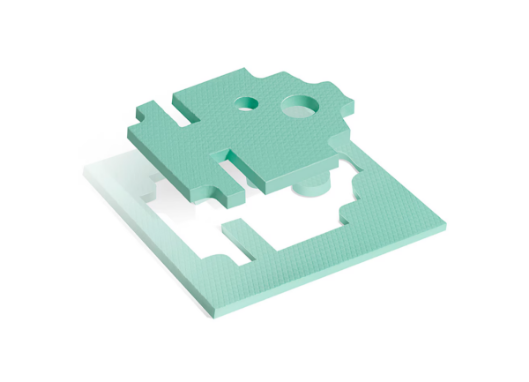

Parker THERM-A-GAP™ PAD 60

Parker Chomerics THERM-A-GAP™ PAD 60 is a high performance, thermally conductive gap filler pad with a thermal conductivity of 6.0 W/m-K. It provides excellent heat transfer and low compression forces while still maintaining conformability between mating surfaces. THERM-A-GAP PAD 60 offers the combination of both excellent thermal conductivity and conformability, along with very low outgassing to provide an effective thermal interface between heat sinks and electronic devices where uneven surfaces, air gaps and rough surface textures may exist.

Product Features

  • 6.0 W/m-K thermal conductivity
  • Low compression force
  • High thermal conductivity
  • “A” version offers high strength acrylic PSA for permanent attachment
  • UL recognized V-0 flammability
  • RoHS compliant

Parker Therm-A-Gap Pad 60

Parker Chomerics Logo

PDF Parker Chomerics THERM-A-GAP PAD 60 Datasheet

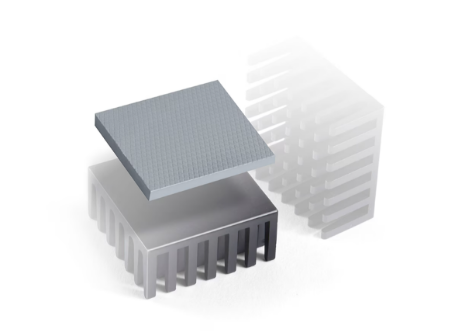

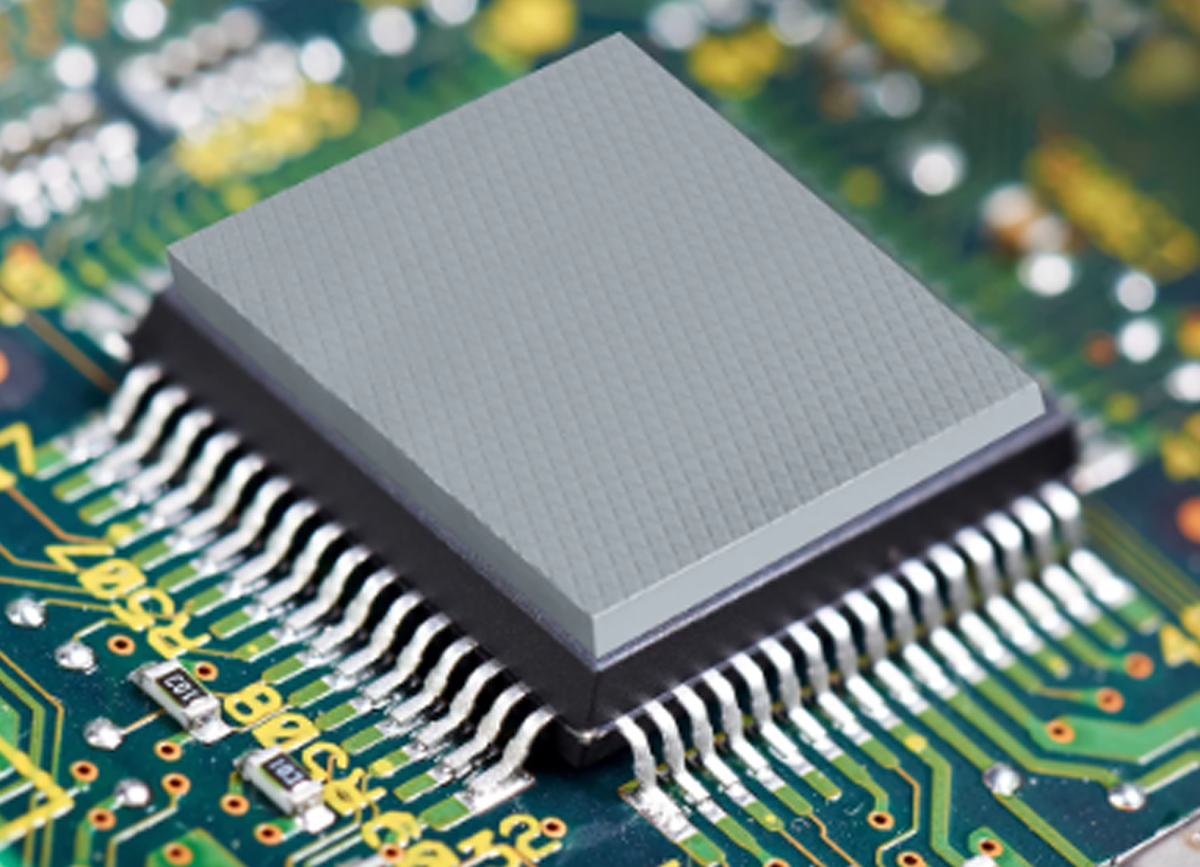

Parker THERM-A-GAP™ PAD 80

Parker Chomerics THERM-A-GAP™ PAD 80 is a high performance, thermally conductive gap filler pad with a typical thermal conductivity of 8.3 W/m-K. It provides superior heat transfer across a range of thicknesses while maintaining low compression forces and conformability between mating surfaces.

THERM-A-GAP™ PAD 80 is designed to serve as an effective thermal interface between heat sinks and heat generating components on electronic devices where uneven surfaces, air gaps, and rough surfaces may exist. PAD 80 is available in standard thicknesses as low as 0.030” to 0.200” (0.76mm to 5.1mm) and can be provided in sheets or cut to custom part sizes. It is available on several material carriers including an aluminum foil carrier that is supplied with pressure sensitive adhesive (PSA) for added adhesive strength during the assembly process

Product Features

  • 8.3 W/m-K thermal conductivity
  • Very low compression force
  • Electrically isolating
  • UL 94 V-0 flammability rating
  • “A” version offers high strength acrylic PSA for permanent attachment
  • Passes NASA outgassing requirements

Parker Therm-A-Gap Pad 80

Parker Chomerics Logo

PDF Parker Chomerics THERM-A-GAP PAD 80 Datasheet

Typical Properties † PAD 30 PAD 60 PAD 70TP PAD 80 Test Method
Physical Color Blue Green Dark Gray Dark Gray Visual
Binder Silicone Silicone Silicone Silicone --
Carrier Options
Supported (standard)
G = Woven Glass carrier - no PSA
A = Aluminum foil carrier - with acrylic PSA
F = Woven glass carrier - centered on thickness.
No pressure sensitive adhesive (PSA) option
Supported (custom):
PN = PEN film carrier
KT = Thermally enhanced polyimide carrier

Unsupported (no carrier):
579 and 580 only - no letter notation needed 		PAD30G
PAD30A
PAD30PN
PAD30KT
PAD30 		PAD60A
PAD60 		PAD70TPG
PAD70TPA
PAD70TPF
PAD70TP 		PAD80A
PAD80G
PAD80PN
PAD80 		--
Standard Thicknesses*, in (mm) 0.020 - 0.200
(0.51 - 5.08)		 0.040 - 0.200
(1.0 - 5.0)		 0.030 - 0.200
(0.76 - 5.08)		 0.040 - 0.200
(0.5 - 5.0)		 ASTM D374
Specific Gravity 2.9 3.3 3.3 3.4 ASTM D792
Hardness, Shore 00 30 40 15 35 ASTM D2240
Percent Deflection @ various pressures
(0.120 in thick sample)
@ 5 psi (34 kPA)
@ 10 psi (69 kPa)
@ 25 psi (172 kPa)
@ 50 psi (345 kPA)
% Deflected
17
26
38
49**
% Deflected
8
13
24
37
% Deflected
18
42
63 ††
73
% Deflected
13
25
50**
64** 		ASTM C165
MOD (0.120 in "G" Type, 0.50 in diam probe, 0.025 in/min rate) §
Operating Temperature Range, °F (°C) -67 to 392
(-55 to 200)		 -67 to 392
(-55 to 200)		 -67 to 392
(-55 to 200)		 -67 to 392
(-55 to 200)		 Chomerics
Thermal Thermal Conductivity, W/m-K 3.2 6.0 7.0 8.3 ASTM D5470
Thermal Impedance, °C-in2/W (°C-cm2/W)
@ 10 psi, @ 0.04 in (1 mm) thick, “G” version only		 0.4
(2.6)		 .028
(1.8)		 0.27
(1.7)		 0.15
(0.15)		 ASTM D5470
Heat Capacity, J/g-K 1 1 0.72 1 ASTM E1269
Coefficient of Thermal Expansion, ppm/K 150 150 150 150 ASTM E831
Electrical Dielectric Strength, Vac/mil (kVac/mm) 150 (6) 125 (8) 200 (8) 125 (5) ASTM D149
Volume Resistivity, ohm-cm 1013 1013 1013 1014 ASTM D257
Dielectric Constant @ 1,000 kHz 7.7 9.3 5.6 6.0 ASTM D150
Dissipation Factor @ 1,000 kHz 0.001 0.006 0.001 0.002 CHO-TM-TP13
Regulatory Flammability Rating V-0 (Tested by Chomerics) V-0 (Tested by Chomerics) V-0 (Tested by Chomerics) V-0 (Tested by Chomerics) UL 94
RoHS Compliant Yes Yes Yes Yes Chomerics Certification
Outgassing, % TML (% CVCM) 0.13 (0.03) 0.05 (0.01) 0.10 (0.03) 0.11 (0.09) ASTM E595
Shelf Life, months from date of shipment 36 36 24 36 Chomerics
Shelf Life, months from date of shipment - “A” aluminum foil carrier version ONLY 18 18 18 18 Chomerics
Storage Conditions, °F (°C) @ 50% Relative Humidity 50 to 90 (10 to 32) 50 to 90 (10 to 32) 50 to 90 (10 to 32) 50 to 90 (10 to 32) Chomerics
† Typical properties: these are not to be construed as specifications.
† † The typical deflection of THERM-A-GAP PAD70TP is approximately 15-40%.
* Thickness tolerance, inches(mm) is ±10% of the nominal part thickness for parts 0.100” (2.5mm) thick or less; those parts greater than 0.100” (2.5mm) thick are held to ±0.010” (0.25mm). Custom thicknesses may be available upon request.
** The typical deflection range is approximately 5-40%.
*** Laminated polyester film provides low abrasion on one side as well as improved dielectric isolation.
§ THERM-A-GAP PAD 60: ASTM C165 MOD (0.50in dia. probe, 0.025 in/min rate)
