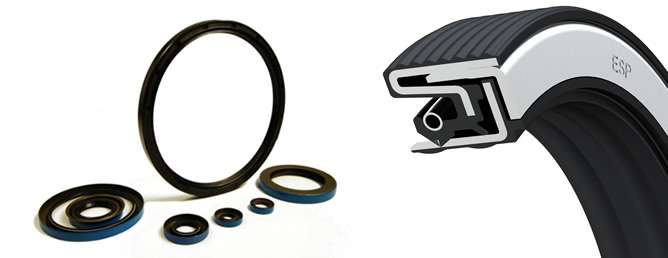

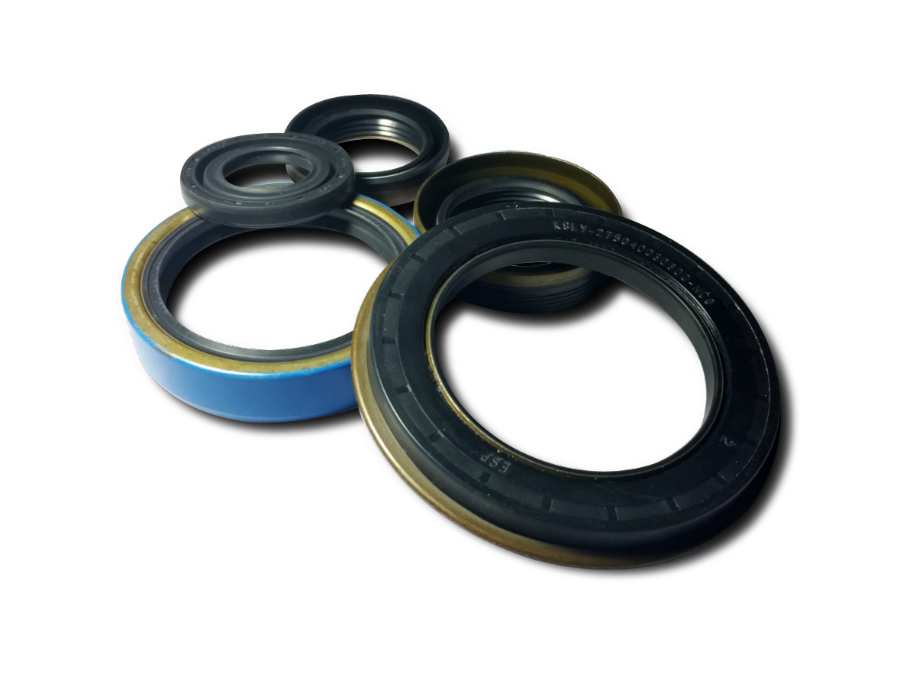

Radial Shaft Seals

Engineered Seal Products is your source for cost-effective, high-quality radial shaft seals. With our own line of radial shaft seals, we can provide solutions for all of your sealing needs. We design parts to be stronger and more efficient to make. Our engineers will work with your team to ensure that your product is well designed. Our strength lies in our ability to assist with design at the front end – whether it is a sealing application or simple material selection assistance.

Introduction to Radial Shaft Seals

Need a custom profile? ESP Engineering can design a seal specific to your applications.

Shaft Seal Engineering Form

How Do I Choose The Right Radial Shaft Seal?

Consider:

6 Standard Radial Shaft Seal Lip Designs

	Description	Recommended For

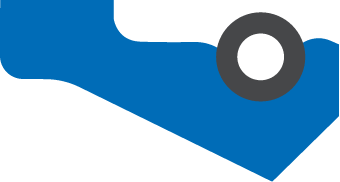

S	Single Lip With Garter Spring	Generally used for sealing lower pressure oil separating applications. Not Recommended for use in applications where the environment contains dirt or contaminants.

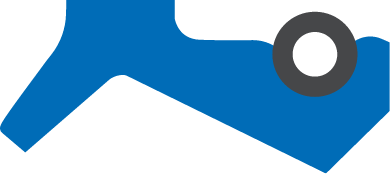

T	Dual Lip (Dust Lip) With Garter Spring	Generally used for sealing lower pressure oil separating applications. The additional dust lip provides increased protection for the main lip. The space between the two lips can also be filled with grease to limit shaft corrosion and allow brief operation without media lubrication.

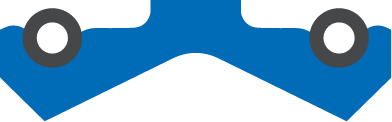

D	Double Lip With Garter Spring	Designed to separate two media.

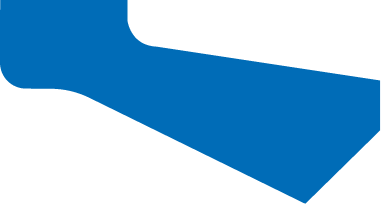

V	Single Lip Without Garter Spring	Generally used for sealing a non-pressure medium, especially for sealing grease or viscous fluids. These seals are also used for dust or dirt exclusion.

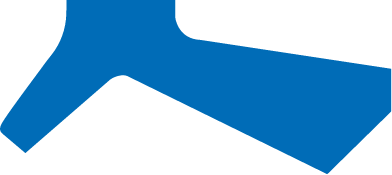

K	Dual Lip (Dust Lip) Without Garter Spring	Generally used for sealing a non-pressure medium, especially for sealing grease or viscous fluids. These seals are also used for dust or dirt exclusion.
U	Triple Lip Without Garter Spring	Generally used for sealing a non-pressure medium, especially for sealing grease or viscous fluids. These seals are also used for heavy dust or dirt exclusion.

7 Standard Radial Shaft Seal Can Designs

	Description	Recommended For
B	Outer Metal "L" Case	Most common and economical. Suitable for steel or cast iron housing. This case design gives a firm and accurate seat, but static sealing on the O.D. is limited.
C	Rubber Covered O.D.	Improved O.D. sealing in bores with minor imperfections and in soft alloy housings.
F	Rubber Covered O.D.	Similar to C but designed with an additional rubber covering fully protecting the internal steel case. Good option for applications prone to corrosion.
A	Outer Metal Case With Reinforcing Plate	Designed with an additional inner case providing increased structural rigidity when a more robust design is required. Good for larger diameters or when the seal is fitted from behind.
M	Outer Metal Case With Rubber Lining	Similar to B but designed with an additional covering to protect the internal face of the steel case from internal corrosion.
P	Outer Metal "P" Case	Designed for ease-of-removal and flange positioning.
D	"Heel" Case	Designed for reduced spring back and ease of installation. Combines sealability of rubber O.D. and bore retention of metal O.D.

ESP Radial Shaft Seal Designs

		Contamination Exposure			RPM
		Low	Med	High	< 300	< 1,000	< 1,500
OUB2/V17	Grease Only Axles Pinion
TC9/LCO	Axles Swivel Housing Brake Shafts
Combi Seals	4WD Front Axle Clutch/Transmission
TSL9/TSR	4WD Front Axle PTO Implements
KSL	Implements
Pinion Seal	Pinion High-Speed High-Runout

ESP Radial Shaft Seal Brochure

OUB2/V17

TC9/LCO

Combi Seals

TSL9/TSR

KSL

Pinion Seal

MAD Seal

Mechanical Seals

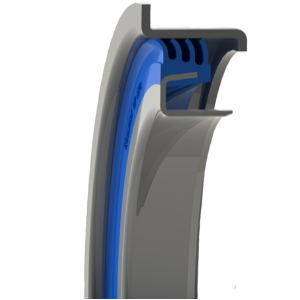

OUB2/V17

Radial Shaft Seals OUB2 and V17 radial shaft seals are known for their durability and reliability, making them a popular choice for many applications. They are an important component to prevent lubricant leakage and contamination from outside substances.

View OUB2/V17 Details

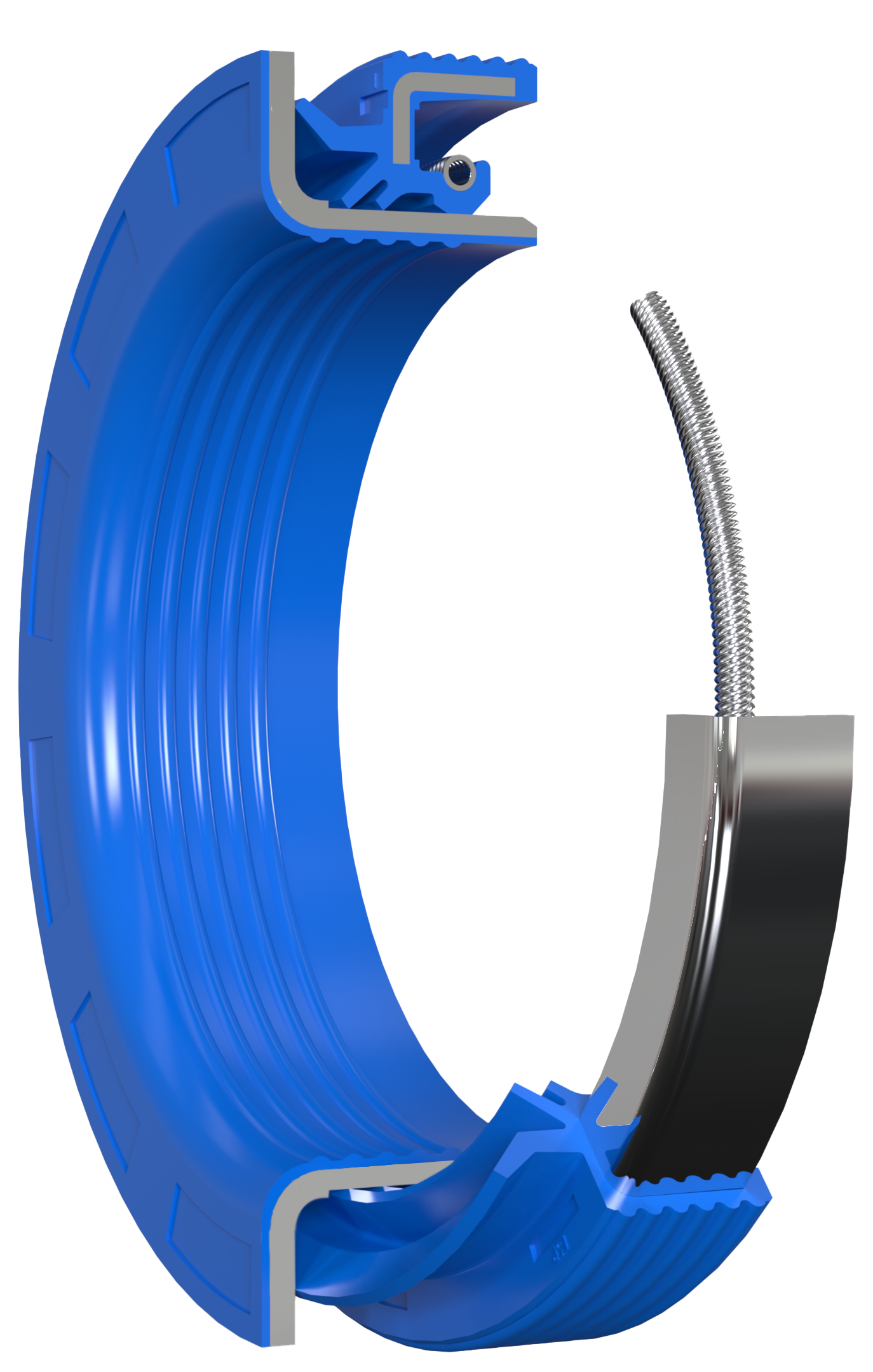

TC9/LCO

The design features a separate lip and sleeve that work together to provide enhanced sealing capabilities and improved durability. The lip of the seal is responsible for preventing lubricant leakage, while the sleeve serves as a protective barrier against dirt, debris, and other contaminants that could damage the seal and assembly.

View TC9/LCO Details

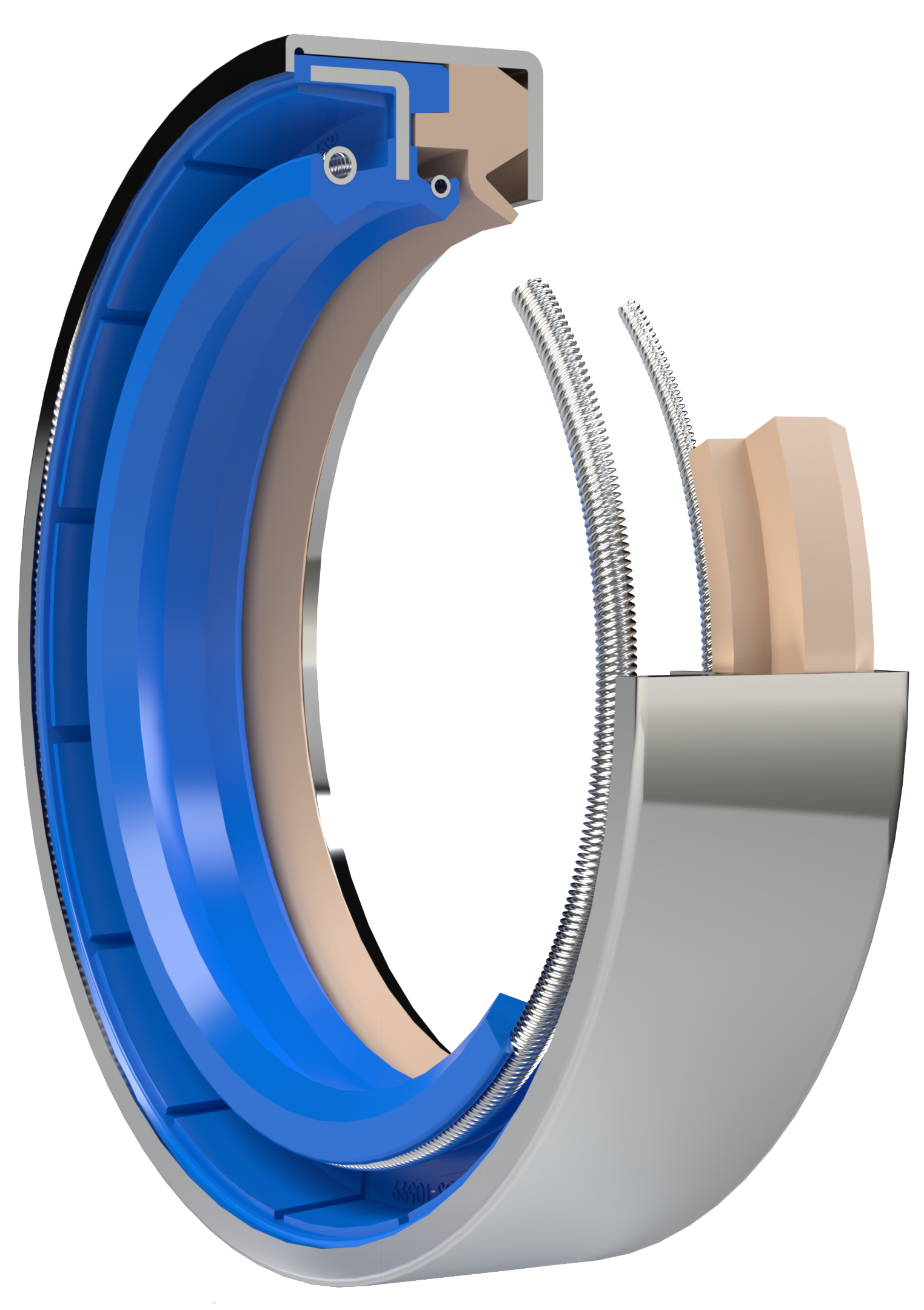

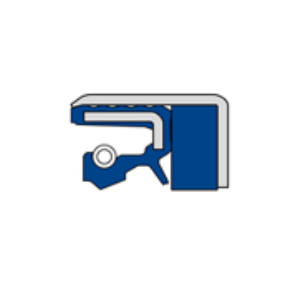

Combi Seals

Combi seals are made from high-quality materials such as rubber or silicone and are designed to provide a tight and reliable seal. They are easy to install and remove; making them an ideal choice for replacement.

View Combi Seals Details

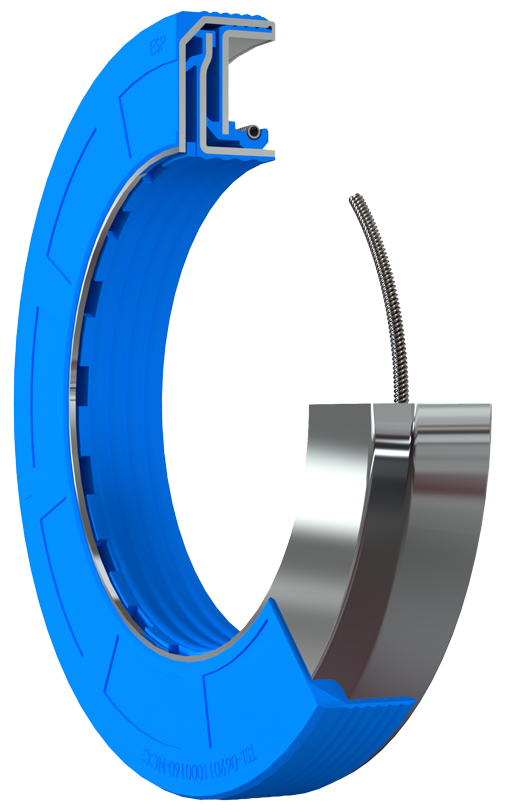

TSL9/TSR

Cassette seals are crucial in ensuring the proper functioning of equipment and machinery, preventing damage and reducing maintentance costs. It is specifically designed to fit into the groove of a cassette or housing unit, providing a secure seal between the stationary and rotating components.

View TSL9/TSR Details

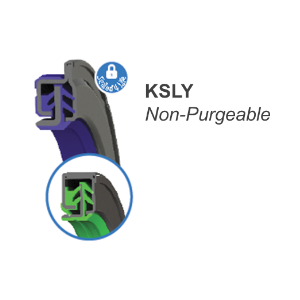

KSL Seals

The KSL series radial shaft seal are used to protect components from damage caused by the ingress of dirt, dust, water, and other particles. KSL series is known for its high durability, reliability, and resistance to wear and tear, making it ideal for use in demanding environments.

View KSL Seal Details

Pinion Seal

Engineered Seal Products' NEW high deflection pinon seal prevents leaks for the life of your frac pump power end. Our specific engineering focus on frac pump consumables stems from the pain of of the oil and gas completions market. Unplanned repairs and downtime cost unnecessary loss of performance and productivity.

View Pinion Seal Details

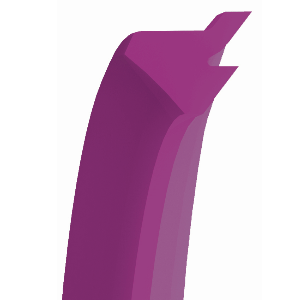

MAD Seal

MAD Seals are a direct replacement for Pivot Joint O-rings using a 45° chamfer configuration. The primary lip offers a superior barrier of contamination with an Engineered Secondary Lip that controls primary lip sealing pressure

View MAD Seal Details

Mechanical Seals

Mechanical seals are precision-engineered devices designed to prevent leakage between two surfaces in relative motion, typically in rotating equipment such as pumps, compressors, and mixers.

View Mechanical Seal Details

Parker Radial Shaft Seal Designs

JM Clipper® Seals

FlexiSeals®

ProTech™ Bearing Isolators

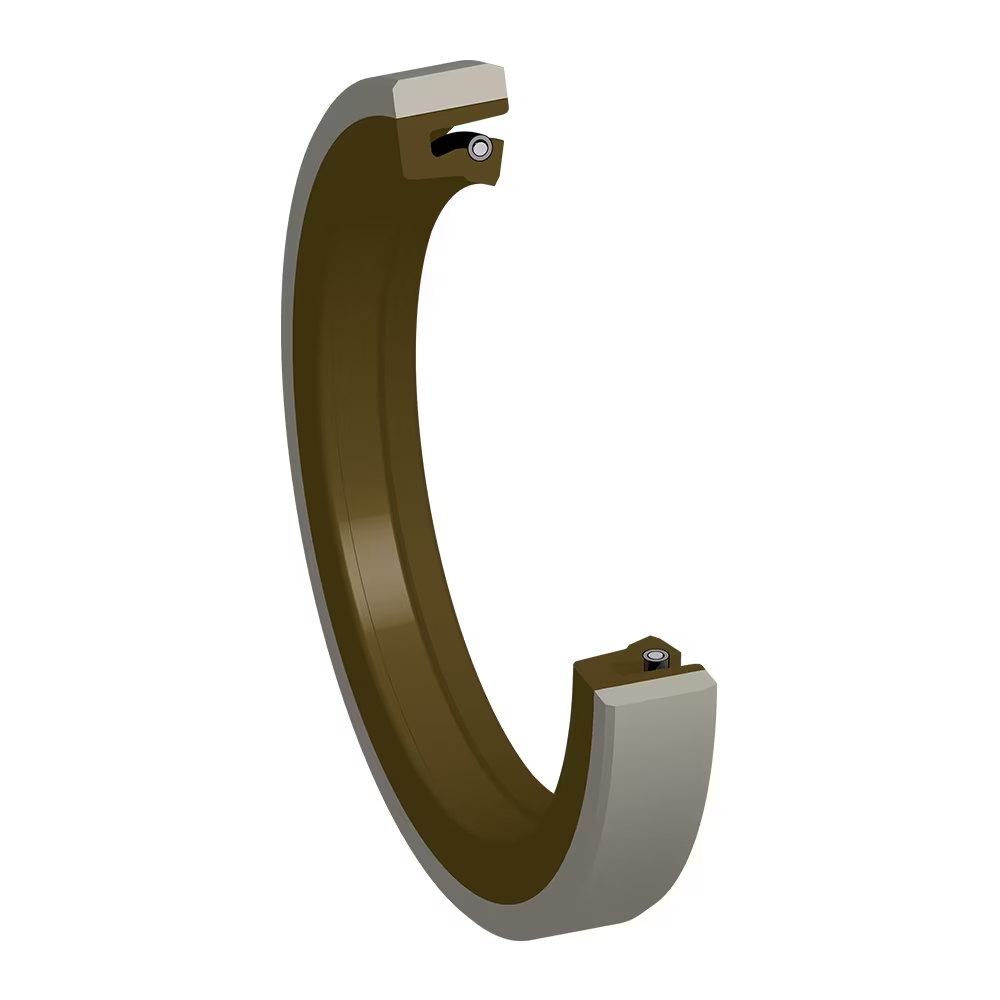

JM Clipper® Seals

Moderate speed rotary & low speed reciprocating applications.

View JM Clipper® Details

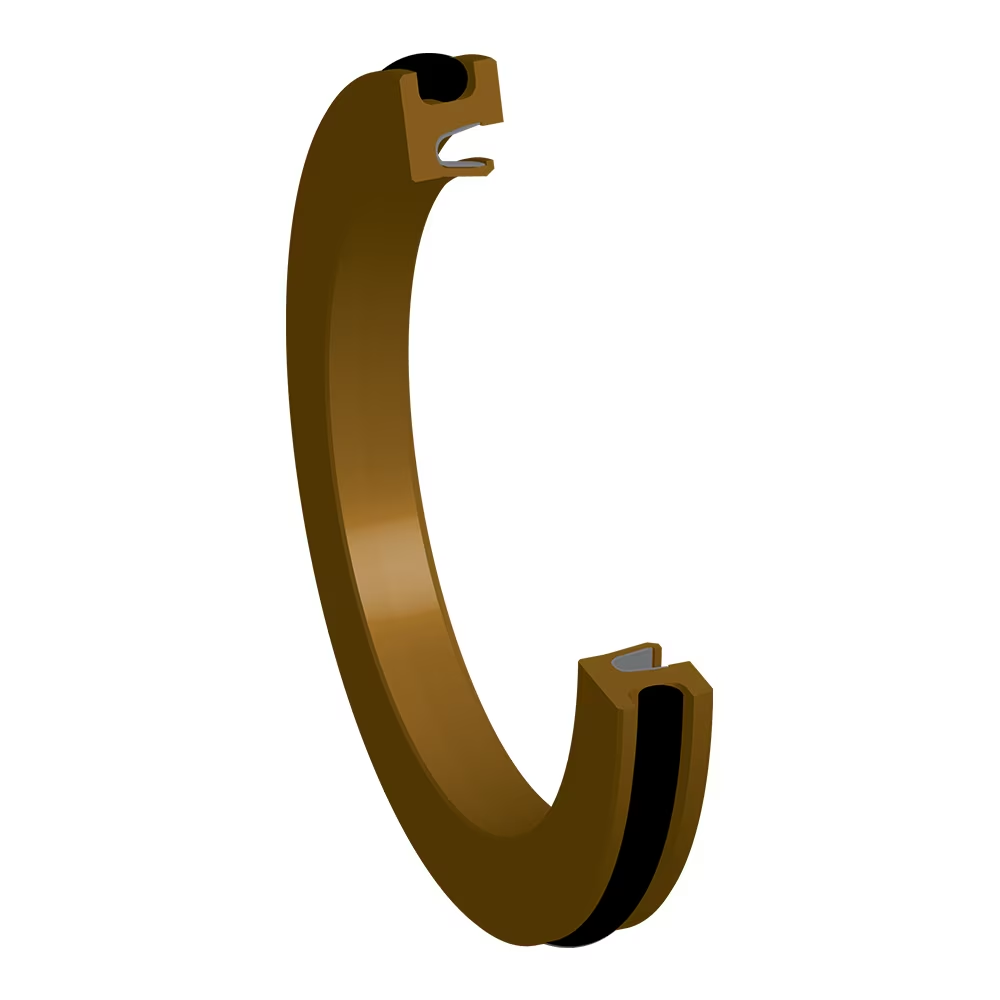

FlexiSeals®

Radial applications with extreme conditions that involve lower speeds and higher pressures.

View FlexiSeal® Details

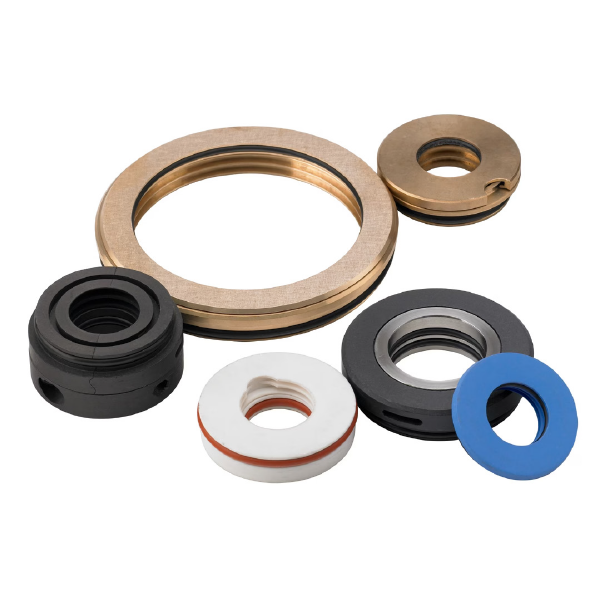

ProTech™ Bearing Isolators

For applications where improving the mean time between failure (MTBF) is critical.

View ProTech™ Bearing Isolator Details

Freudenberg Radial Shaft Seal Designs

Simmerrings®

Combi Seals®

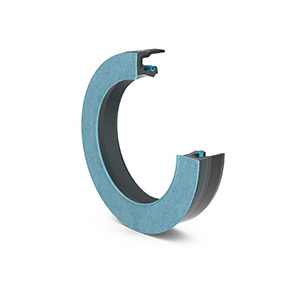

Simmerrings®

Moderate speed rotary & low speed reciprocating applications.

View Simmerrings® Details

Combi Seals®

Combi seals consist of a Simmerring® (individual or double lip) and a polyurethane wiper. They increase the protection against external contaminants while allowing axial and rotary movement.
