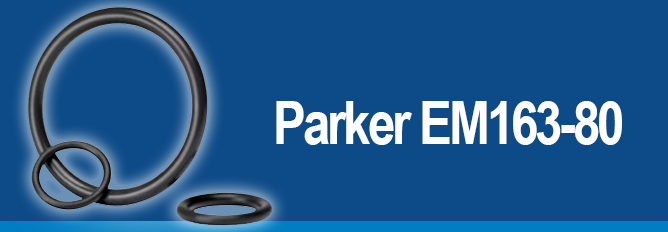

Parker EM163-80 Low Temp EPDM
Excellent Low-Temperature Resilience
Aerospace hydraulic systems pose some of the most challenging seal environments in the world. The critical nature of aircraft landing systems, actuation systems, wheel, and brake assemblies requires a premium sealing compound to reduce the frequency of maintenance and maintain the safety of all passengers. With advancements to aircraft hydraulic fluids, mating hardware designs, and sealing requirements the engineers at Parker have developed the EM163 compound. Parker’s EM163 not only to meets the ever-demanding NAS1613 Rev 6 material specification in full, but also offers improved low-temperature resilience and excellent resistance to all commercially available phosphate ester hydraulic fluids. With TR10 temperature of -68°F, EM163 easily surpasses the industry-standard requirement and is a best in class option for eliminating low-temperature leakage.
EM163-80 Product Features:
- NAS1613 Rev. 6 compliant
- Excellent resistance to all commercially available phosphate ester fluids (ie. AS1241, Skydrol, Hyjet)
- Excellent low temperature performance
- 80 Shore M hardness
- Product capabilities include O-rings, molded shapes, extruded and spliced geometries
