Valve Sealing Systems

What Are Valve Sealing Systems?

Valve sealing systems regulate fluid flow and prevent leakage at critical interfaces in industrial valves. They use coordinated components such as seat inserts, stem seals, and body gaskets to ensure pressure containment, chemical compatibility, and reliable shutoff.

In industrial environments, valve sealing systems must resist high pressure, chemical exposure, temperature changes, and continuous operation. Effective seal design and material selection are critical for long-term reliability and safety.

Typical Operating Conditions

Valve sealing systems are used in diverse industrial settings and face several common operating challenges:

High Pressure	risk of seal extrusion or deformation
Chemical exposure	material compatibility requirements
Temperature swings	thermal expansion and contraction
Dynamic motion	wear on stem sealing systems
Continuous cycling	fatigue and seal compression loss

These challenges require engineered seal stacks and materials that maintain sealing integrity in demanding environments.

Common Failure Modes

Valve sealing systems may fail for several common reasons:

seal extrusion under high pressure
abrasive wear at sealing surfaces
chemical degradation of elastomers
compression set or loss of elasticity
improper installation or tolerance mismatch

Understanding these failure mechanisms helps engineers choose suitable materials and seal designs for their applications.

Engineering Design Considerations

Designing an effective valve sealing system requires evaluating several engineering variables.

Key considerations include:

seal compression and deformation behavior
extrusion gap control under pressure
friction during valve actuation
chemical compatibility with process media
temperature limits of elastomer and thermoplastic materials
sealing geometry across different valve types

Coordinating seal materials, component geometry, and valve hardware is essential for reliable performance.

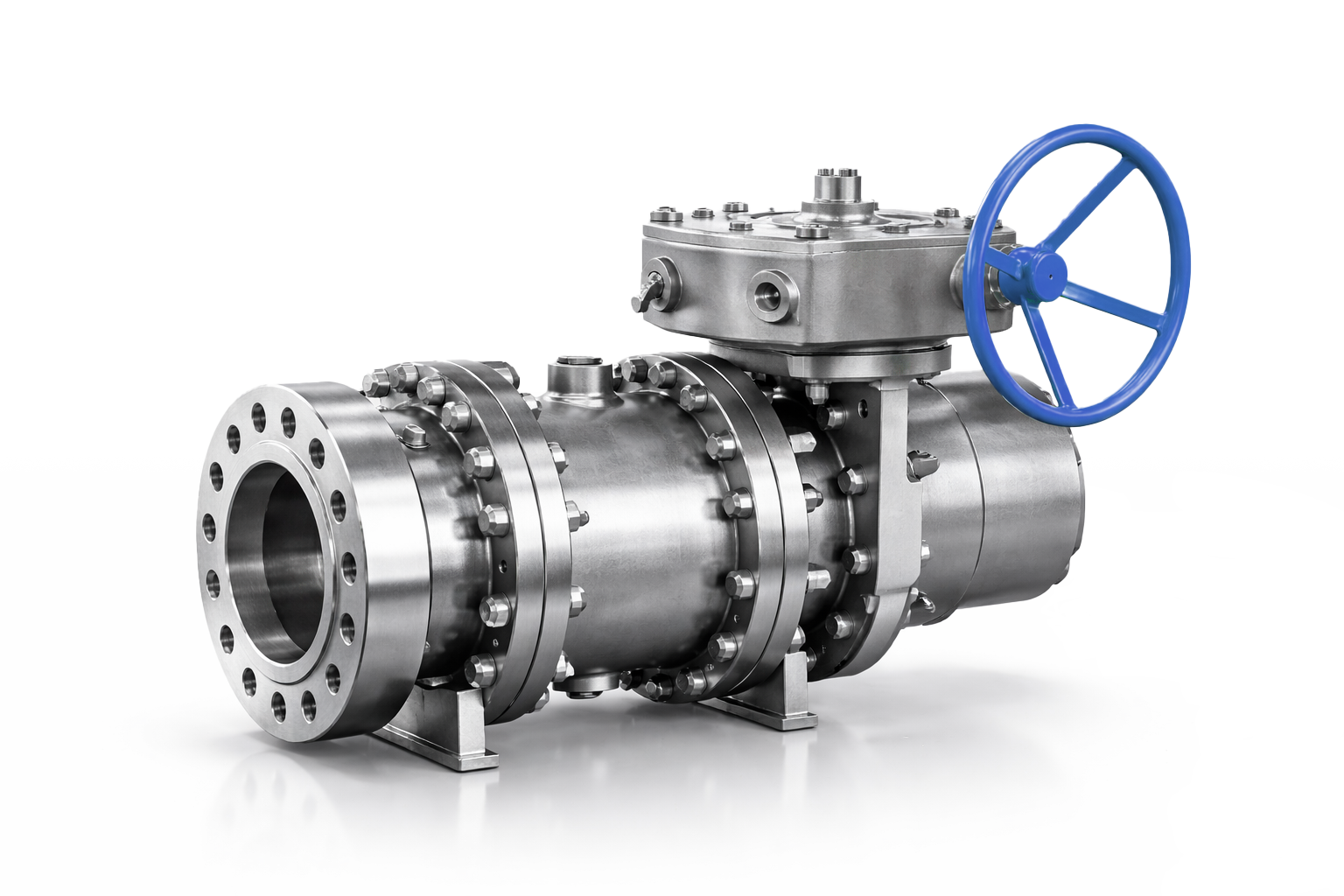

Valve Seal System Architecture

Valve sealing systems rely on multiple sealing components working together to maintain pressure containment and reliable shutoff performance.

A typical valve sealing architecture includes several coordinated elements:

Flow shutoff interface	seat inserts	seal between valve closure element and body

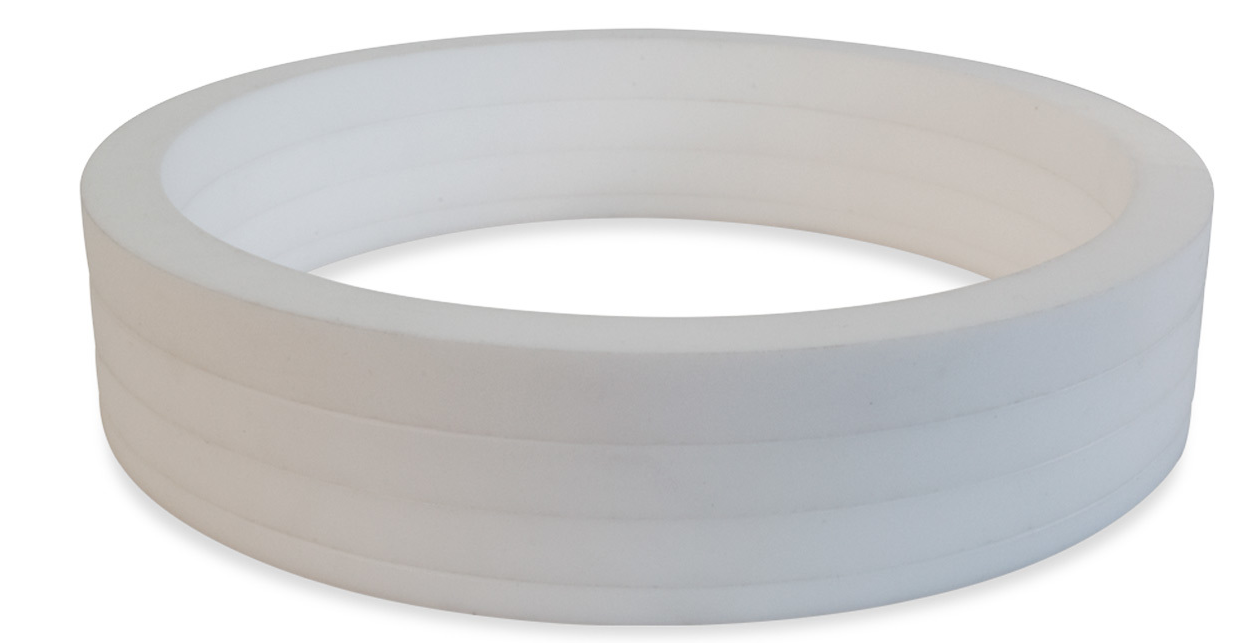

Stem interface	stem seals, packing	prevent leakage along the valve stem

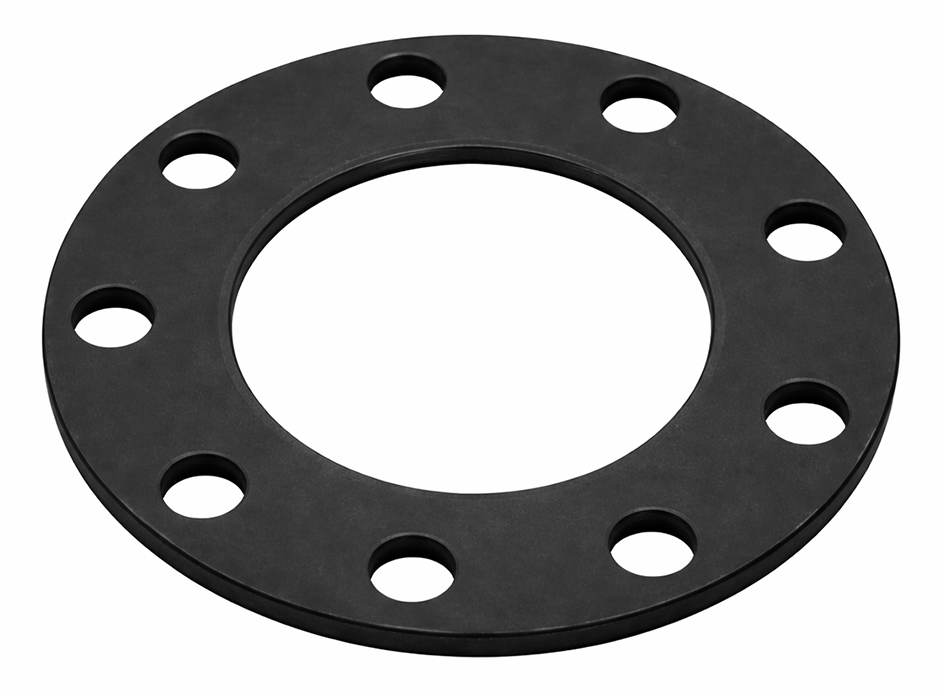

Body joints	O-rings, gaskets	seal valve body sections
High-pressure reinforcement	backup rings	prevent seal extrusion
Motion interfaces	thrust washers, bushings	reduce friction during actuation

These components must function together as an integrated system rather than individual parts.

Seal performance depends on the interaction between seal geometry, material selection, and valve hardware tolerances.

Materials Used in Valve Sealing Systems

Material selection is critical to valve performance and longevity.

PTFE	excellent chemical resistance and low friction
RPTFE	improved wear resistance for high-cycle valves
PEEK	high strength and high temperature performance
FKM	strong hydrocarbon and chemical resistance
FFKM	extreme chemical compatibility

Common Components in Valve Sealing Systems

Valve sealing performance relies on several coordinated components.

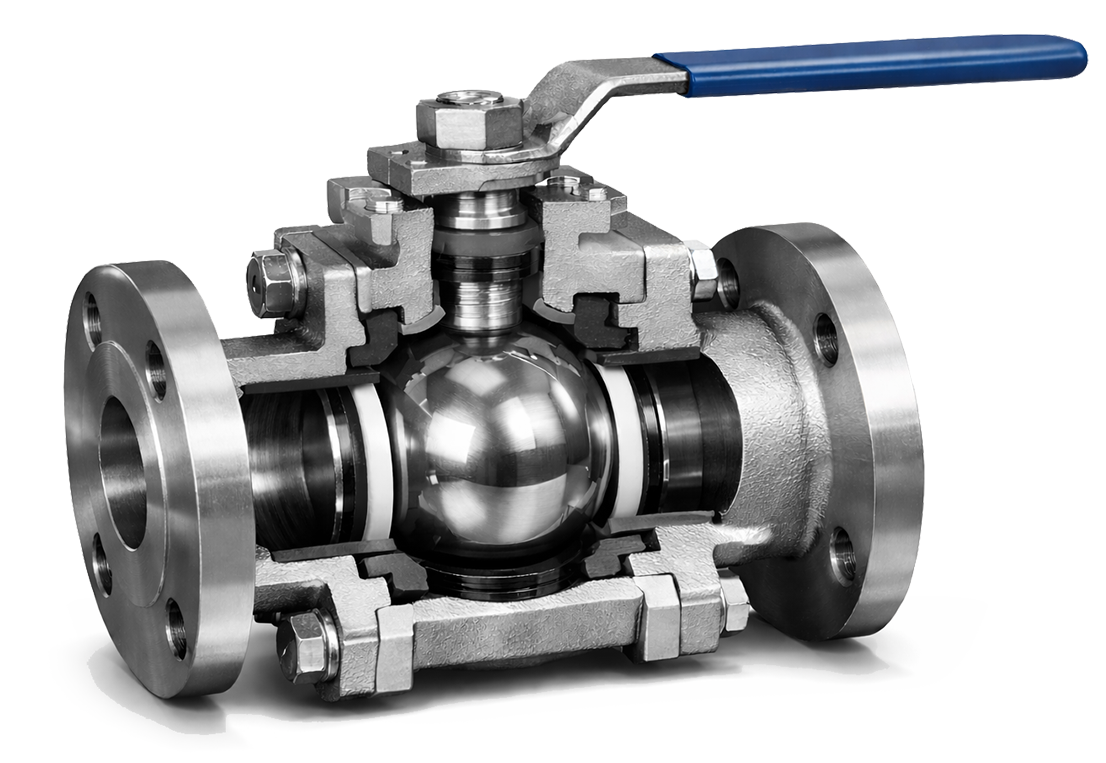

Seat inserts	primary sealing interface between valve closure element and body
Stem seals	prevent leakage along the valve stem
O-rings	provide static sealing at body interfaces
Backup rings	prevent extrusion under high pressure

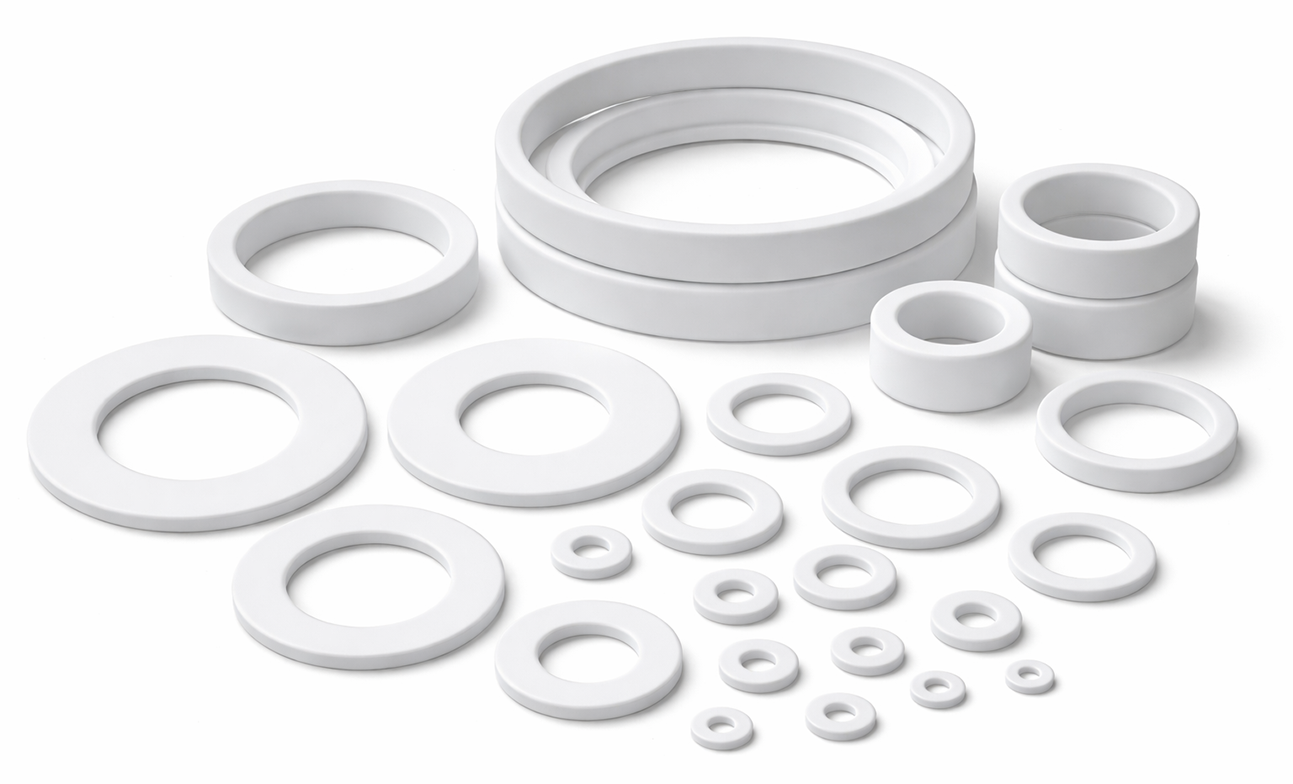

Thrust washers	reduce friction during valve actuation

Industries Using Valve Sealing Systems

Valve sealing systems are widely implemented in industrial equipment and process systems.

Oil & Gas
Valves manage the flow of hydrocarbons, chemicals, and production fluids in upstream, midstream, and processing operations.

Food & Beverage Processing
Sanitary valves control fluid movement in hygienic processing systems and require materials suitable for washdowns and regulatory compliance.

Semiconductor Manufacturing
Precision valves control chemical delivery and maintain ultra-pure process environments.

Fuel Handling Systems
Fuel dispensing and storage systems depend on effective valve sealing to prevent leakage and ensure safety.

Related Applications

Valve sealing systems are often integrated with other engineering applications.

High-Pressure Sealing
Pump Sealing Systems
Wear & Abrasion Components

Frequently Asked Questions

What materials are commonly used for valve seat inserts?
PTFE, reinforced PTFE, and PEEK are commonly used, depending on pressure, temperature, and chemical compatibility requirements.

What is the difference between seat seals and stem seals?
Seat seals provide the primary shutoff interface inside the valve, while stem seals prevent leakage along the valve stem.

How do valve seals fail under high pressure?
High pressure can cause seal extrusion, deformation, or accelerated wear if materials and clearances are not properly specified.

How do you select materials for valve sealing systems?
Material selection depends on pressure, temperature, chemical exposure, and mechanical cycling in the valve.

Engineering Support for Valve Sealing Applications

Engineered Seal Products supports OEMs and industrial equipment manufacturers with precision-molded elastomers and high-performance thermoplastic components used in valve sealing systems.

Our engineering team works with customers to optimize seal performance through:

material selection for demanding media and temperature conditions
seal geometry and extrusion control in high-pressure environments
wear-resistant thermoplastic components for long service life
application-specific sealing solutions for complex valve designs

By combining material expertise with application engineering, ESP helps manufacturers improve reliability, extend service intervals, and maintain sealing performance in demanding industrial environments.
