Understanding Lip Designs in Rotary Shaft Seals: Single, Double, Triple Lip Explained

When it comes to radial shaft seals, the lip design isn’t just a minor detail — it’s a critical factor that determines how well your equipment stays sealed, how long it lasts, and how it performs under pressure. Whether you're designing new equipment or evaluating spec changes across OEM platforms, choosing the right lip configuration is essential.

At Engineered Seal Products we help OEMs make sense of seal options across a range of operating environments — and one of the most common questions we get is: "Do I need a single lip, double lip, or triple lip seal?"

Let’s break it down.

What Is a Shaft Seal “Lip” Anyway?

The lip of a radial shaft seal is the flexible edge that makes dynamic contact with the rotating shaft. It serves as the front-line barrier, keeping lubricants inside the system. The number and type of lips directly influence:

• Friction and heat generation
• Contaminant exclusion
• Pressure capacity
• Wear resistance

Lip of a rotary shaft seal is typically classified into 3 major categories:

• Primary fluid sealing lip for oil sealing
• Dust lip for contaminants exclusion
• Auxillary lips for additional sealing.

Now let’s dive into each configuration.

Single Lip Seal: Simple, Efficient, and Common

Best for: Clean environments, lubricated systems, low contamination risk, low pressure

Design: A single sealing lip with a spring (usually garter-style) applies radial force against the shaft to maintain a tight seal. It’s designed primarily to retain oil or grease within the housing.

Advantages:

• Low friction
• Minimal Shaft Wear
• Cost-effective
• Ideal for controlled environments or enclosed systems

Factors affecting lip selection:

• Speed of the Shaft and material
• Pressure
• Fluid type
• Temperature

When to use: If your equipment operates in clean, lubricated environments — such as enclosed gearboxes or pumps — a single lip seal may be sufficient.

ESP Tip: Don’t assume less is worse — ESP often recommends single lip seals for food-grade applications or high-speed systems where minimal heat and wear are more important than dirt exclusion.

Double Lip Seal: Added Protection from Contaminants

Best for: Moderate contamination, outdoor applications, mobile equipment

Design: Includes a primary sealing lip (with a spring) and a secondary dust lip facing outward. The second lip provides additional protection against dust, dirt, and moisture — especially useful in exposed environments.

Advantages:

• Improves contamination control
• Protects the primary lip from debris buildup
• Extends seal and lubricant life

Common EOM Applications:

• Agricultural machinery
• Outdoor gearboxes
• Off-highway equipment

Factors affecting lip selection:

• Nature of the contaminants
• Speed of the Shaft
• Temperature of the external side.

ESP Tip: Our engineering team frequently recommends double lip seals for sealing in dusty or wet environments where seal degradation from contamination is a risk. We also help customers validate shaft surface finish to ensure both lips perform effectively.

Triple Lip Seal: Heavy-Duty Defense

Best for: Harsh environments, heavy contamination, slurry or chemical exposure

Design: Builds on the double lip design with a third auxiliary lip, usually for added exclusion or pressure resistance. Often used without a spring on the outer lips, but configurations can vary.

Advantages:

• Maximum contaminant exclusion
• Enhanced sealing under severe conditions
• Reduced ingress of abrasive particles, water, or chemicals

Typical Uses:

• Mining and construction applications
• High-pressure washdown environments (e.g., food processing)
• Wheel hubs or industrial gearboxes with exposure to dirt and water

ESP Tip: Triple lip seals increase drag and may require stronger shaft finishes to prevent wear. We guide OEMs through the trade-offs and supply PTFE-lipped or hybrid designs when ultra-low friction is needed alongside robust sealing.

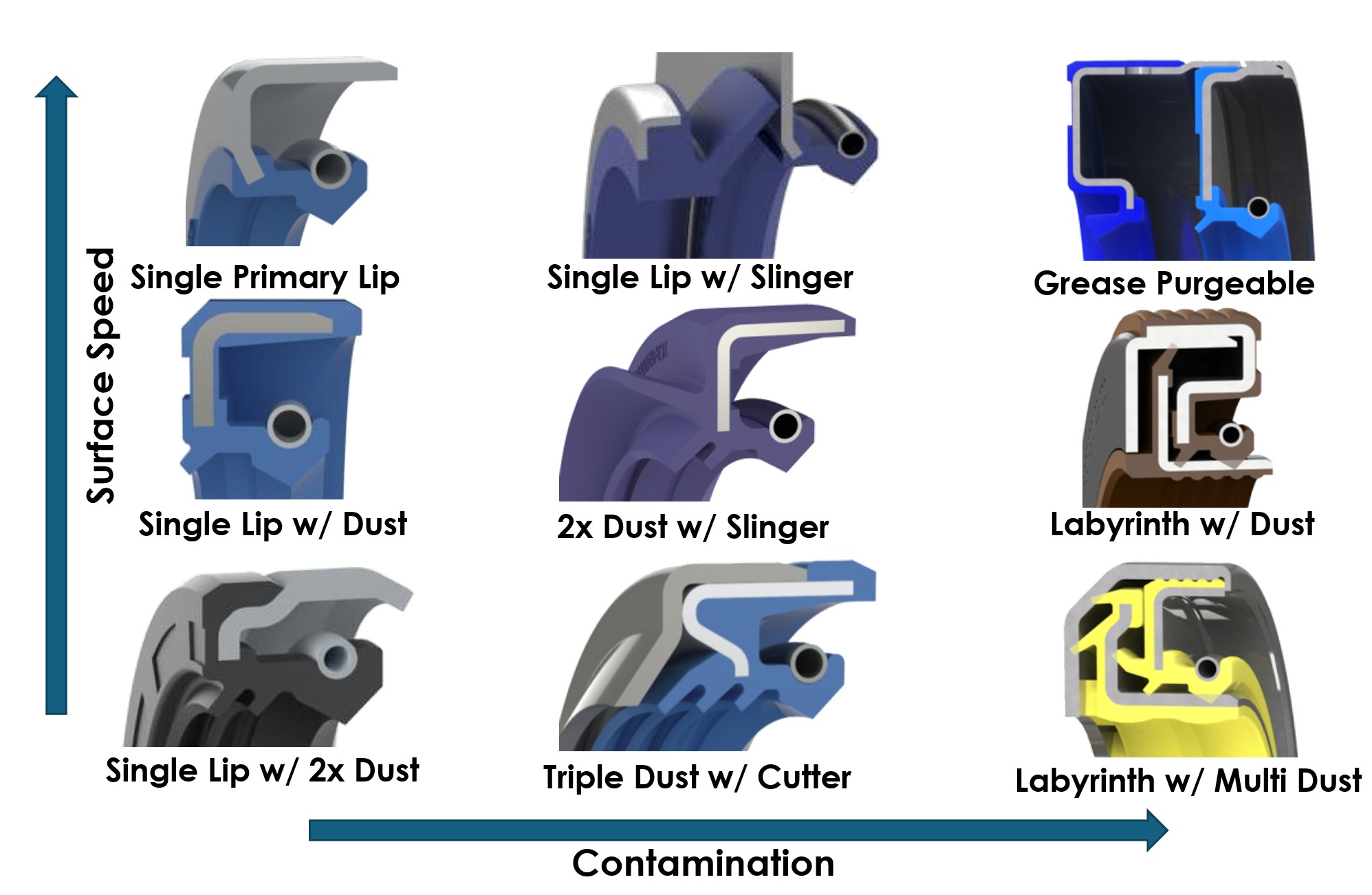

Selecting the Right Lip Design: What to Consider

Choosing the right configuration depends on more than just part availability. Here’s what ESP’s Applications Engineering team evaluates (at minimum) during every design review:

We also help OEMs customize or consolidate seal specs across platforms for easier inventory management — without over- or under-engineering.

Why Work with ESP for Radial Shaft Seal Selection?

1. Multi-Brand Product Expertise: ESP owns and operates a state-of-the-art radial shaft seal manufacturing plant for our own designs. But, if a better fit is available we are proud to be premier distributors for other top brands like Freudenberg, and Parker. We offer unbiased solutions tailored to your spec.
2. Engineering-led approach — Our team provides detailed application reviews, test support, and failure analysis.
3. Customized solutions for OEMs — From FDA-compliant seals to PTFE variants for high-speed shafts, we tailor solutions to your real-world needs.
4. Inventory and logistics — ESP makes it easy to spec, source, and scale seals across your manufacturing operations.

Final Thoughts

Lip design isn't just a technical footnote — it's a performance driver. Whether you're specifying seals for a new design or troubleshooting an underperforming system, understanding the trade-offs between single, double, and triple lip seals is key to building reliable equipment.
